3DP-ABS1.75-01-B

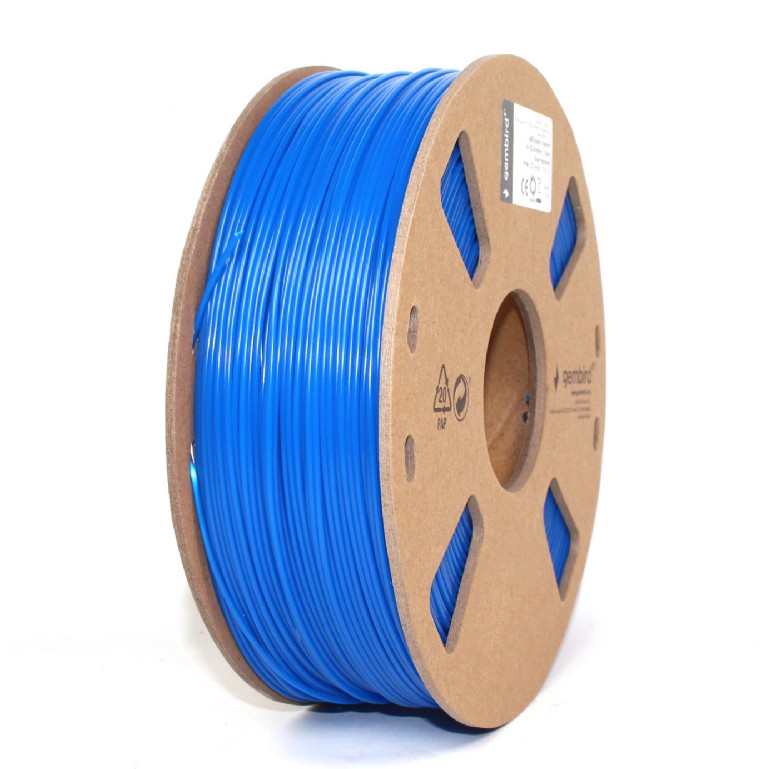

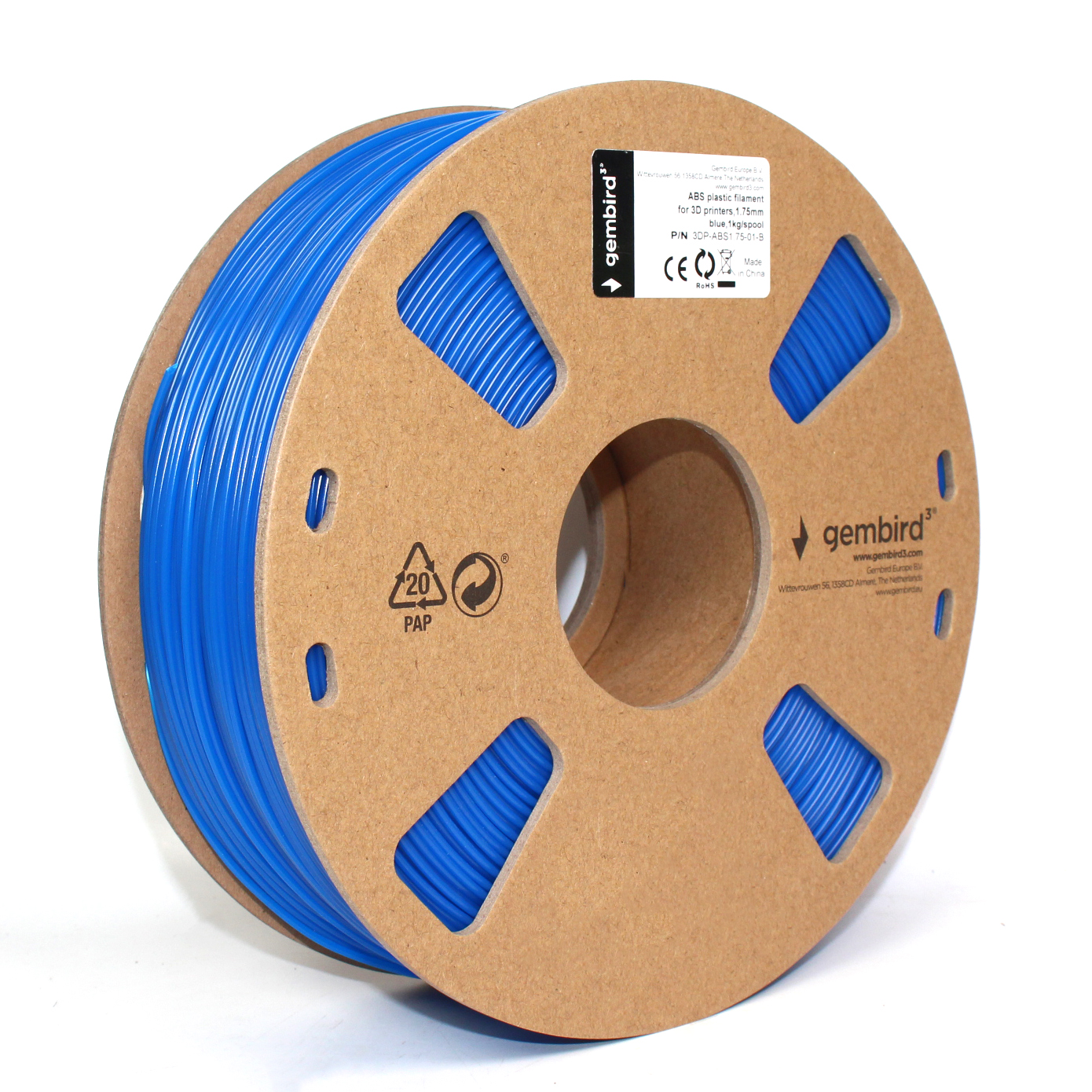

ABS filament Blue, 1.75 mm, 1 kg

  • VERSATILE & EASY TO USE
  • Acrylonitrile butadiene styrene (ABS) is a common thermoplastic strong, flexible durable plastic available in a range of colors.
  • ABS is the plastic used in lots of things around us and is perfect for heated plastic extrusion 3D printing.

▲
  • 3DP-ABS1.75-01-B
  • 3DP-ABS1.75-01-B
  • 3DP-ABS1.75-01-B
  • 3DP-ABS1.75-01-B
▼
Thumbelina Zoom Image

  • High strength, good toughness
  • Low density: when printing larger volume - the model is lighter
  • Can be applied to a variety of 3D printers

Additional information
additional info filament Pantone codes (273 kb)
Specifications
Material: ABS, 1.75 mm diameter
Weight: 1 kg/spool (2.2 lbs)
Length: approx. 400 m
Length: approx. 400 m
Density at 21.5 °C: 1.01 g/cm3
Melt Flow Index at 10min, 2.16kg: 5
Melt Point: 225 - 240 °C
Print Plate > 80 °C
Heat-Deflection-Temperature at 0.455 MPa: 85 °C
Yield Strength at 5mm/min: 45 MPa
Impact Strength: 16 KJ/m2
Tensile Break: 30 %
Diameter: 1.75 ± 0.05 mm
Spool dimensions: 200 mm diameter x 63 mm height x 60.5 mm central hole

System requirements
A 3D printer with heated bed with 1.75 mm extruder of temperature around 230 °, suitable for use with ABS filament


Packing Details
Q'ty in crtn, pcs8
Crtn volume, CUM0.035816
Crtn weight, kgs11.74
Individual package size LxWxH:210x210x85 mm
Carton size LxWxH:440x440x185 mm
Country of originCN
Barcode8716309088398
Customs code3916909000
Packagingcolor box

Trade Mark

Product information sheet
